AC FAN
-
-

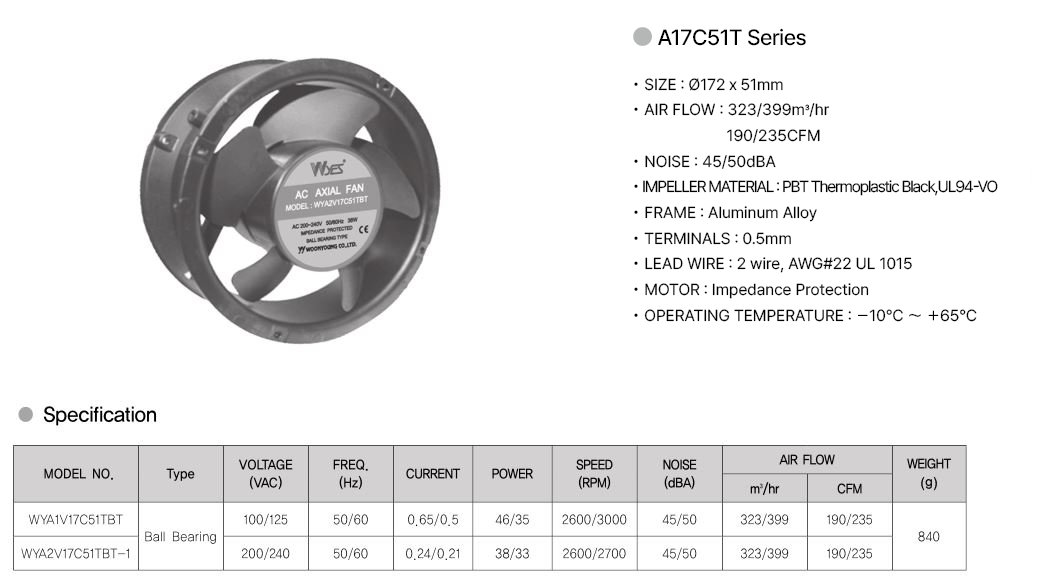

Model No WYA1V17C51TBT WYA2V17C51TBT-1 TYPE Ø172×51mm (Ball Bearing type) 인증서(Certification) 정격(Rating) 100/125V 200/240V 입력(Input) 100/125V 200/240V 출력(Output) 용량(Capacity) 0.22~0.4A
지원 서비스
카달로그
CAD 도면
프린트 하기사양 및 특징

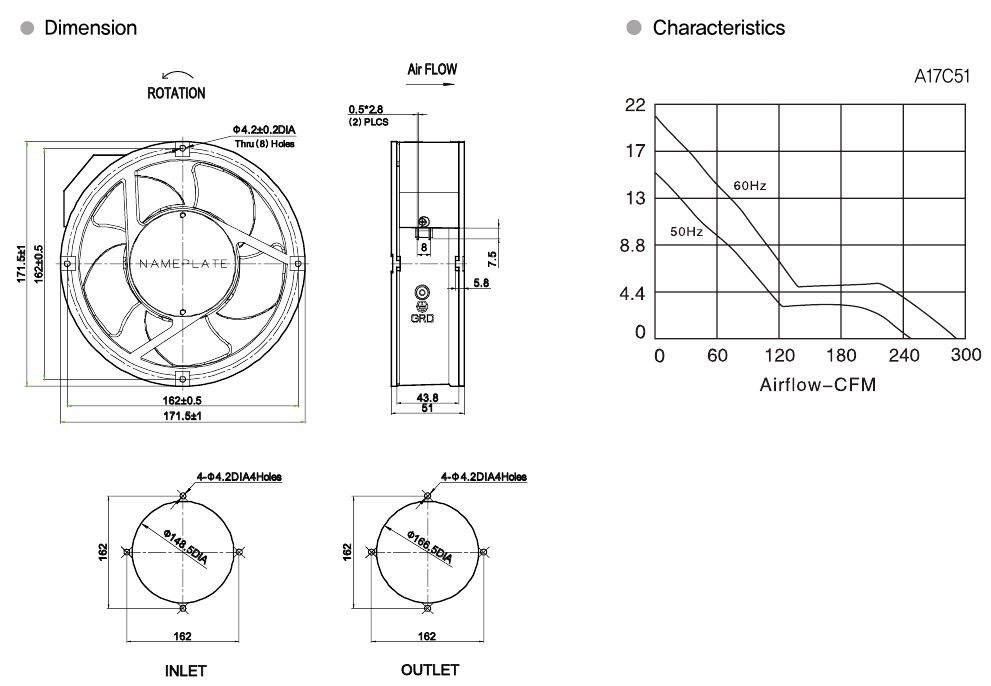

• SIZE : Ø172×51mm
• AIR FLOW : 323/399m 3 /hr
190/235CFM
• NOISE : 45/50dBA
• IMPELLER MATERIAL : PBT Thermoplastic Black,UL94-VO
• FRAME : Aluminum Alloy
• TERMINALS : 0.5mm
• LEAD WIRE : 2 wire, AWG#22 UL 1015
• MOTOR : Impedance Protection
• OPERATING TEMPERATURE : -10℃~+65℃
