AC FAN
-
-

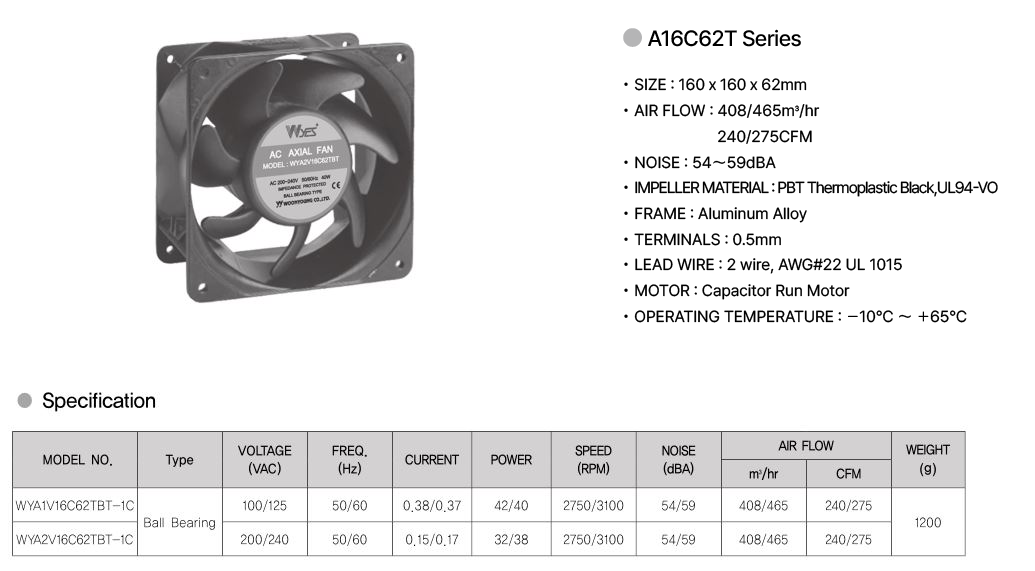

Model No WYA1V16C62TBT-1C WYA2V16C62TBT-1C TYPE 160x160x62mm (Ball Bearing type) 인증서(Certification) 정격(Rating) 100/125V 200/240V 입력(Input) 100/125V 200/240V 출력(Output) - 용량(Capacity) 0.2~0.4A
지원 서비스
카달로그
CAD 도면
프린트 하기사양 및 특징

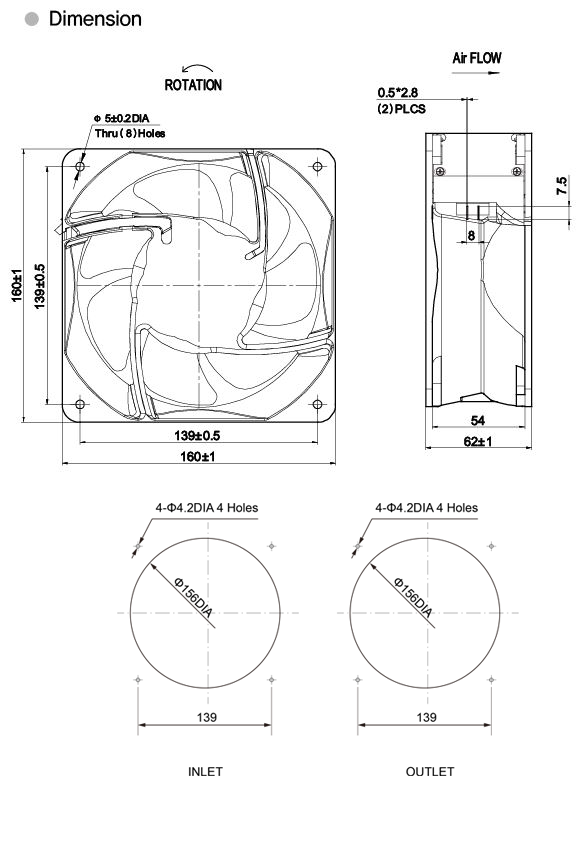

• SIZE : 160×160×62mm

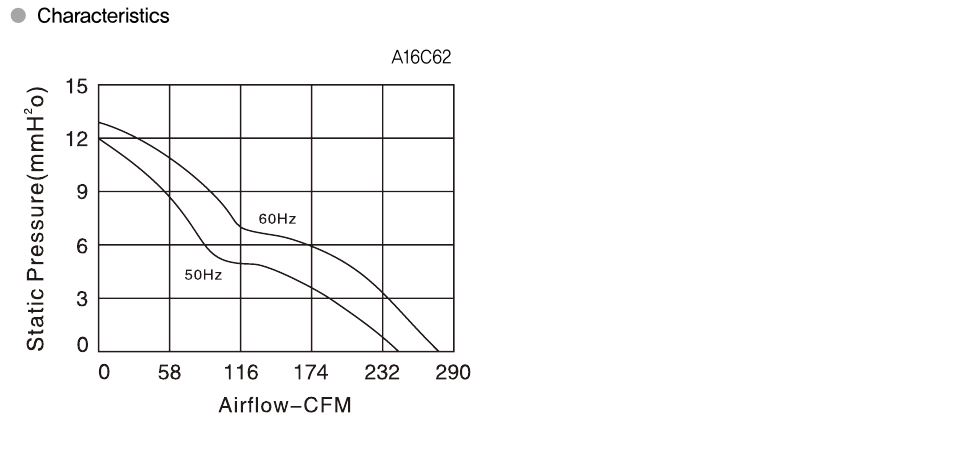

• AIR FLOW : 408/465m 3 /hr
240/275CFM
• NOISE : 54~59dBA
• IMPELLER MATERIAL : PBT Thermoplastic Black,UL94-VO
• FRAME : Aluminum Alloy
• TERMINALS : 0.5mm
• LEAD WIRE : 2 wire, AWG#22 UL 1015
• MOTOR : Capacitor Run Motor
• OPERATING TEMPERATURE : -10℃~+65℃
