팬-Fan
AC FAN
-
-

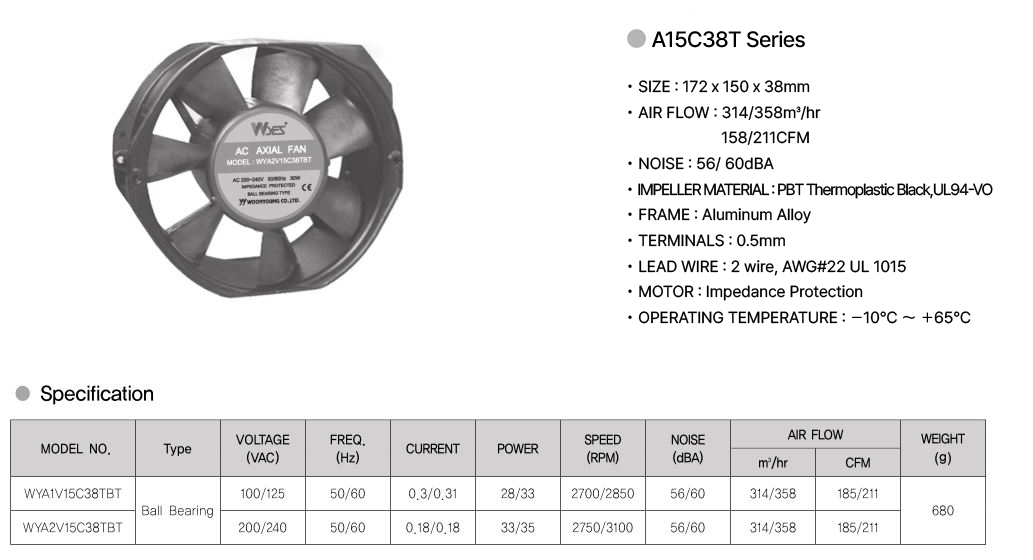

Model No WYA2V15C38TBT WYA1V15C38TBT TYPE 172×150×38mm (Ball Bearing type) 인증서(Certification) 정격(Rating) 200/240V 100/125V 입력(Input) 200/240V 100/125V 출력(Output) - 용량(Capacity) 0.18A
지원 서비스
카달로그
CAD 도면
3D CAD 도면
프린트 하기사양 및 특징

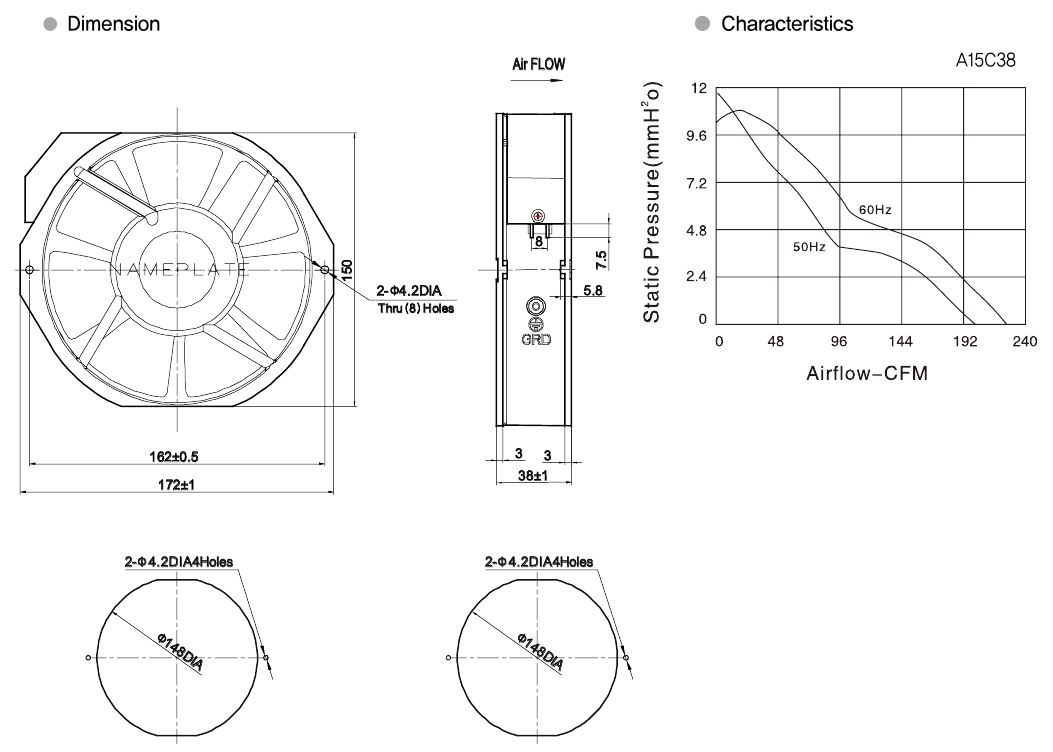

• SIZE : 172×150×38mm
• AIR FLOW : 314/358m 3 /hr
158/211CFM
• NOISE : 56/ 60dBA • IMPELLER MATERIAL : PBT Thermoplastic Black,UL94-VO
• FRAME : Aluminum Alloy
• TERMINALS : 0.5mm
• LEAD WIRE : 2 wire, AWG#22 UL 1015
• MOTOR : Impedance Protection
• OPERATING TEMPERATURE : -10℃~+65℃
