팬-Fan
AC FAN
-
-

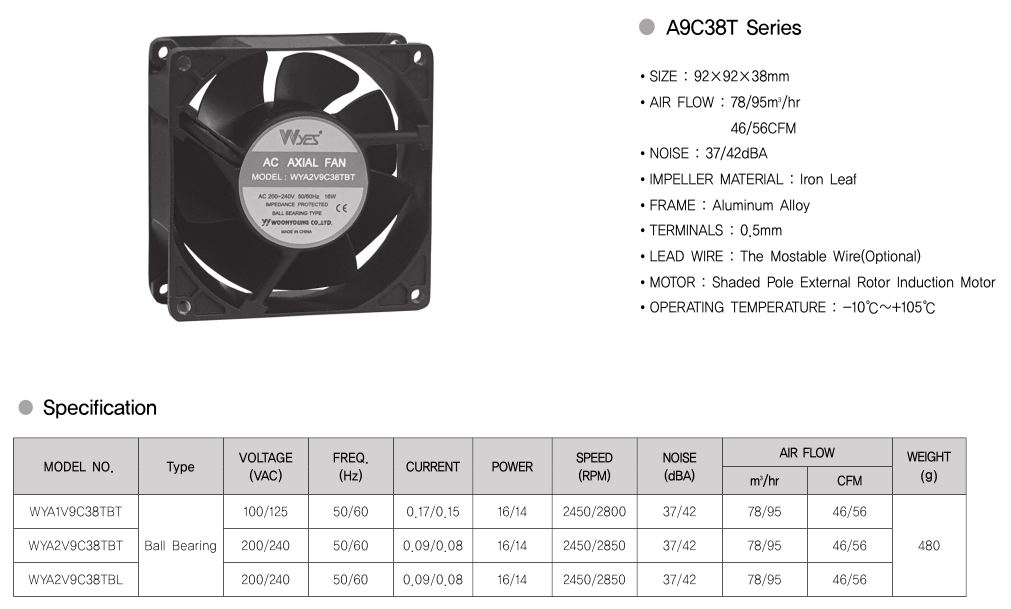

Model No WYA1V9C38TBT WYA2V9C38TBT WYA2V9C38TBL TYPE 92×92×38mm (Ball Bearing type) 인증서(Certification) 정격(Rating) 100/125V 200/240V 200/240V 입력(Input) 100/125V 200/240V 200/240V 출력(Output) - 용량(Capacity) 0.12A
지원 서비스
카달로그

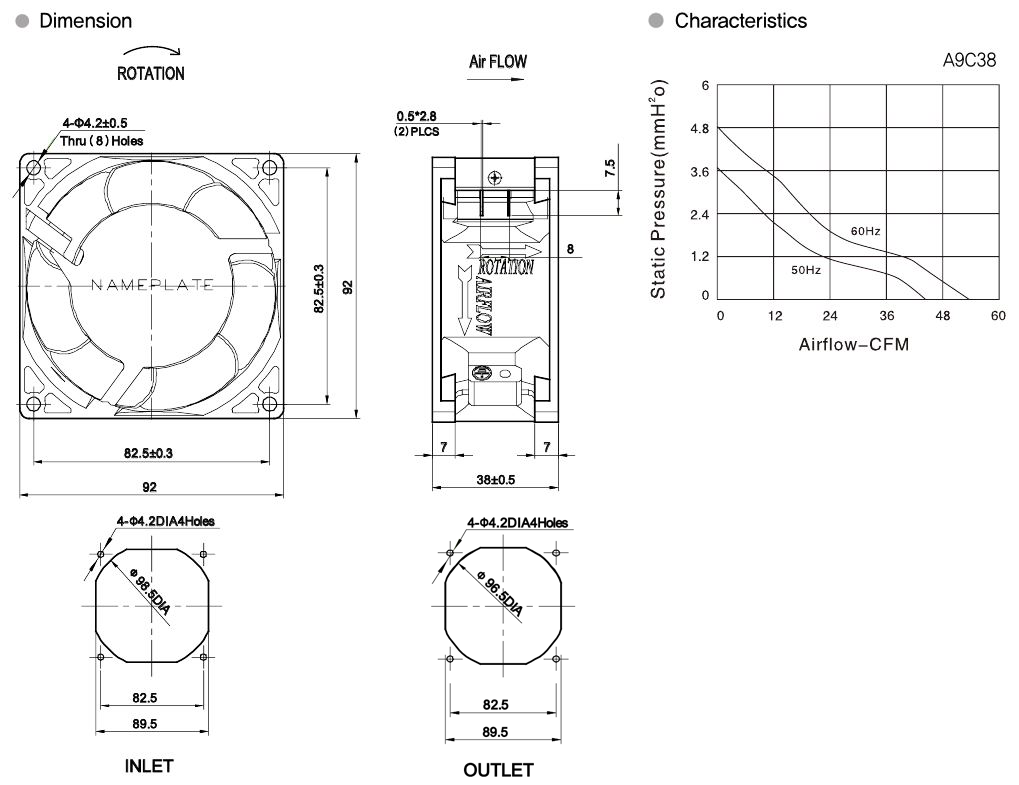

CAD 도면
프린트 하기사양 및 특징
• SIZE : 92×92×38mm
• AIR FLOW : 78/95m 3 /hr
46/56CFM
• NOISE : 37/42dBA • IMPELLER MATERIAL : Iron Leaf
• FRAME : Aluminum Alloy
• TERMINALS : 0.5mm
• LEAD WIRE : The Mosta le Wire(Optional)
• MOTOR : Shaded Pole E ternal Rotor Induction Motor
• OPERATING TEMPERATURE : -10℃~+105℃
