팬-Fan
AC FAN
-
-

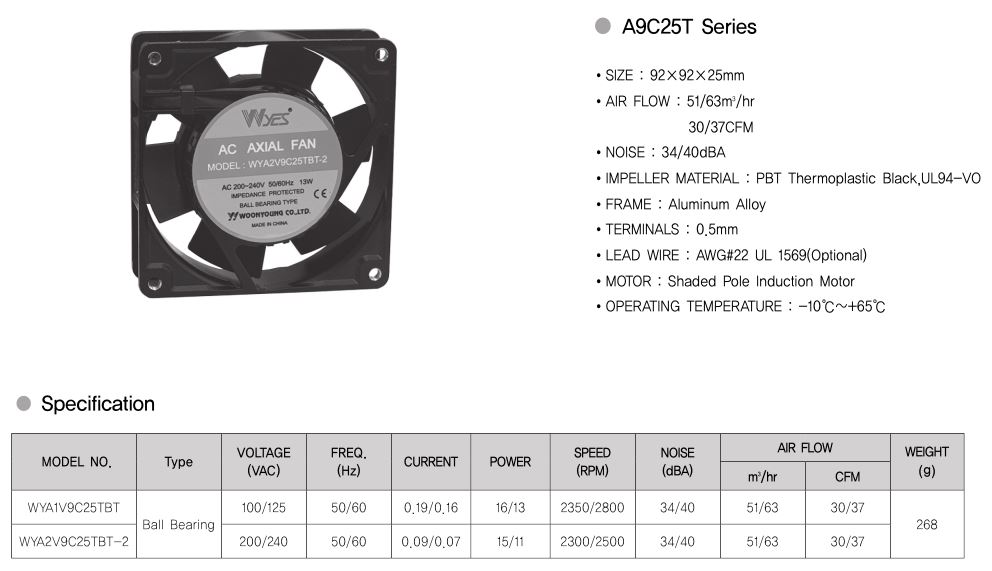

Model No WYA1V9C25TBT WYA2V9C25TBT-2 TYPE 92×92×25mm (Ball Bearing type) 인증서(Certification) 정격(Rating) 100/125V 200/240V 입력(Input) 100/125V 200/240V 출력(Output) - 용량(Capacity) 0.14~0.17A
지원 서비스
카달로그
CAD 도면
프린트 하기사양 및 특징
• SIZE : 92×92×25mm
• AIR FLOW : 51/63m 3 /hr
30/37CFM
• NOISE : 34/40dBA
• IMPELLER MATERIAL : PBT Thermoplastic Black,UL94-VO
• FRAME : Aluminum Alloy
• TERMINALS : 0.5mm
• LEAD WIRE : AWG#22 UL 1569(Optional)
• MOTOR : Shaded Pole Induction Motor
• OPERATING TEMPERATURE : -10℃~+65℃
